Facility Control System
The one to buy, when you only want to buy one !


Facility Control System Features:
Full site LED graphics.
Systems can be added as needed.
Simplified installation and operation.
Individually lighted keypad keys (optional).
Sealed keypads both inside and out.
Connects to your off-site alarm monitoring.
Stand-alone operation or.
Interfaces to Windows-based management software.
Windows 98/ME/2000/XP compatible.

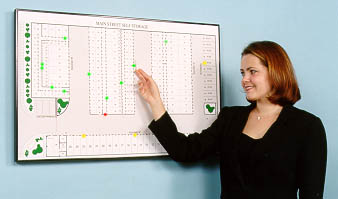

Full Site Graphics:
With a simple click of the mouse, the following will be displayed on the site plan:
W ho's in, door status and alarm conditions or
V acancies of a particular size or
A ll available units or
D elinquent units or
M anager generated display

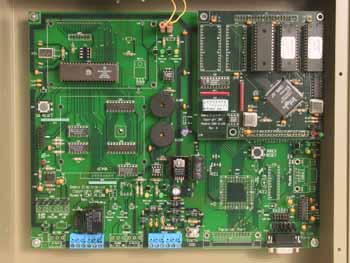

System Controller:
Independent from PC for ease of maintenance.
LED's on all transmit and receive signals to aid problem diagnosis.
Built-in loop back jumper plug needed to diagnose serial communications problems.

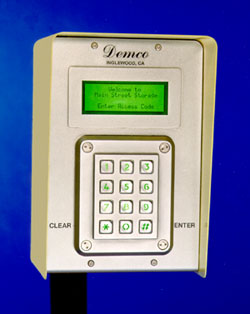

Keypad Features:
Sealed from both the front and rear.
Lightning Surge Protection built in.
Powder coated galvanized steel case with stainless steel front.
Case available in black, white or OSHA yellow.
Two output relays with built in pulse stretchers.
10amp relay for magnetic latches.


Liquid Crystal Display Features
Four lines by twenty characters
Built in LCD heater.
Displays customer prompts or.
Displays messages to your customer.

Card Reader Features:
Industrial grade card reader.
Reads Track 2 card stripe.
Use credit cards for entry or pay-at-the-gate.
Field replaceable.

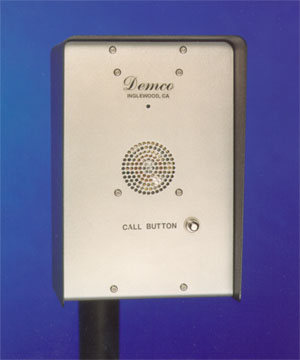

Camera/Intercom Features:
Hidden pin-hole color camera.
Aiphone compatible intercom.
Field replaceable.
Compatible with CCTV systems.
Operates from 12V DC or 24V AC.
Mylar Speaker.
Stainless Steel Call Button.
Aiphone compatible slave station.

Multiplexer Features:
Available in 32, 64, 96 or 128 switch versions.
Separate S110 terminal board for easy installation.
Switch number and status displayed.
Display uses LED's for easy low light viewing.
Test mode for monitoring a particular switch.
Can operate on 9 volt battery during installation.

Relay Panel Features:
Eight 10 amp 30 volt DC relays.
COM, NC and NO contacts available.
4inputs for switch monitoring.
All relays can be triggered or latched.
Built in pulse stretchers.

Lightning Protection Features:
Protection for both power and network.
The only three stage protection in the industry.
Protects up to 15,000 volts and 5,000 amps.
All devices have surge protection.
Keypads have additional lightning surge protection
built-in and all other devices can be lightning protected
with unique lightning terminal board.
